Band-It  Pneumatic Junior® Clamp Application Tool

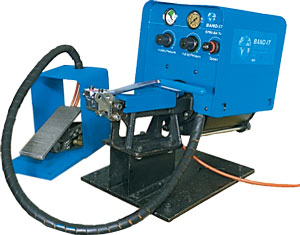

The BAND IT S75099 is a pneumatic tool designed to tension, set the lock, and cut off the remaining scrap clamp tail on Junior style clamps—including Junior Smooth I.D. and standard Junior preformed clamps. It's built for operators who need to quickly and securely install hose clamps on hose assemblies or other objects using a single, air-powered tool.

The S75099 is compatible with BAND IT's Junior style clamps, manufactured in three materials:

·       Galvanized carbon steel

·       Type 201 Stainless Steel

·       Type 316 Stainless Steel

These clamps are available in widths ranging from ¼" to ¾" and diameters ranging from 13/16" up to 8", making the S75099 suitable for a wide range of hose assembly and object-clamping applications.

During an operator-controlled cycle, the S75099 pulls the band through the buckle to tension the clamp around the object until the desired tension is achieved. If the cycle continues, the tool automatically releases a portion of the tension pressure, switching to a lower holding pressure in preparation for the manual locking and cut-off steps.

The process breaks down into three stages:

1.    Tensioning: The tool pulls the band through the buckle until the target tension is reached.

2.    Pressure Reduction: The tool automatically drops to a lower holding pressure, readying the clamp for finishing.

3.    Locking and Cut-Off: The operator engages the cut-off handle to simultaneously set the lock and shear off the excess scrap clamp tail.

A correctly finished clamp has a lock set evenly with the height of the buckle thickness, along with a smooth edge free of sharp points. This ensures a clean, safe installation with no scrap material protruding from the finished band.
